Specification:
Type | SCS 1010 |
Forward Voltage | 2.8-3.2V |
Color Temperature | 1800K-6500K |
Forward Current | 300mA |
Electrostatic Discharge | 2.0 kV (HBM) |
Luminous Flux | 80-92LM(Ra>80) |
Application:
1. Indoor and outdoor displays
2. Optical indicators
3. Backlighting
4. Interior automotive lighting
5. Signal and symbol luminaire
Related Series:
| Model | Size | Color Temperature | Forward Voltage(Min) | CRI(Ra) | Luminous Flux | Forward Current(mA) | Viewing Angle 2θ½ |
|---|
| SCS-0704 | 0.7mm × 0.4mm × 0.3mm | 1800K-6500K coordinate customization | 2.7-2.9V | Ra>80/>90/>95 | 5-6LM | 20mA | 160° |
| SCS-0705 | 0.7mm × 0.45mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 22-28LM | 100mA | 160° |
| SCP-0805 | 0.8mm × 0.45mm × 0.4mm | 1800K-6500K coordinate customization | 2.7-2.9V | Ra>80/>90/>95 | 5-6LM | 20mA | 160° |
| SCS-0905 | 0.9mm × 0.5mm × 0.4mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 25-30LM | 120mA | 160° |
| SCS-1005 | 1.0mm × 0.5mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 35-45LM | 150mA | 160° |

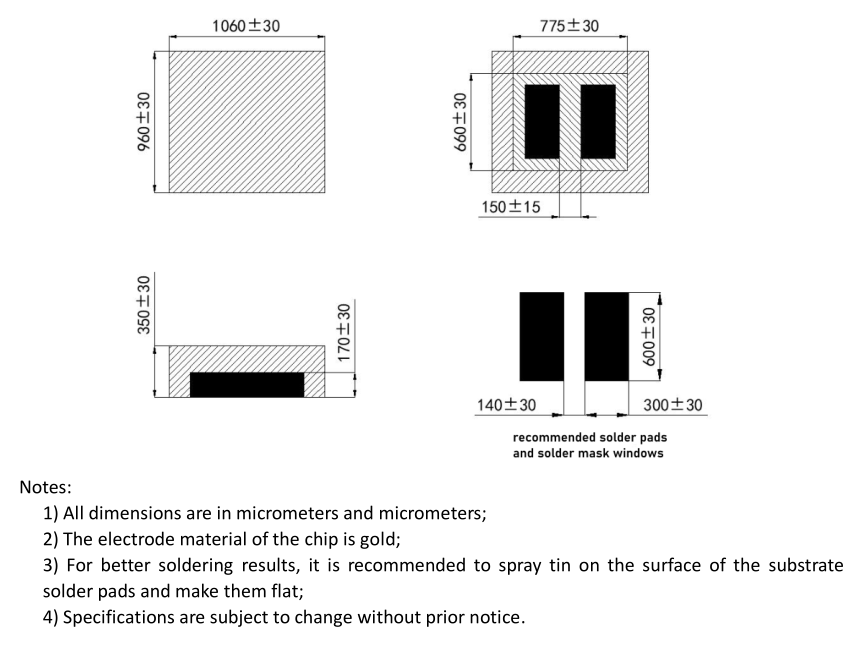

| SCS-1010 | 1.06mm × 0.96mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 80-92LM | 300mA | 160° |
| SCS-1313 | 1.3mm × 1.3mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 160-230LM | 700mA | 160° |
Handling Precautions:
1) When expanding the CSP LEDs in the film, it is necessary to
ensure that CSP LEDs are in the center
area of the expanding ring and should not deviate too much.
2) The width of the entire CSP LED area after chip expanding should
be ≤ 72mm, and the maximum
diameter of the expanded chip area should be ≤ 102mm.
