Specification:
Type | CSP LED |
Forward Voltage | 2.8-3.2V |
Color Temperature | 1800K-6500K |
Forward Current | 150mA |
Electrostatic Discharge | 2.0 kV (HBM) |
Luminous Flux | 35-45LM(Ra>80) |
Application:
- Displays for both indoor and outdoor applications
- Visual indicators
- Illumination for backlighting
- Automotive interior lighting
- Signal and symbol lighting fixtures
Related Series:
| Model | Size | Color Temperature | Forward Voltage(Min) | CRI(Ra) | Luminous Flux | Forward Current(mA) | Viewing Angle 2θ½ |
|---|
| SCS-0704 | 0.7mm × 0.4mm × 0.3mm | 1800K-6500K coordinate customization | 2.7-2.9V | Ra>80/>90/>95 | 5-6LM | 20mA | 160° |
| SCS-0705 | 0.7mm × 0.45mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 22-28LM | 100mA | 160° |
| SCP-0805 | 0.8mm × 0.45mm × 0.4mm | 1800K-6500K coordinate customization | 2.7-2.9V | Ra>80/>90/>95 | 5-6LM | 20mA | 160° |
| SCS-0905 | 0.9mm × 0.5mm × 0.4mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 25-30LM | 120mA | 160° |
| SCS-1005 | 1.0mm × 0.5mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 35-45LM | 150mA | 160° |
| SCS-1010 | 1.06mm × 0.96mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 80-92LM | 300mA | 160° |
| SCS-1313 | 1.3mm × 1.3mm × 0.3mm | 1800K-6500K coordinate customization | 2.8-3.2V | Ra>80/>90/>95 | 160-230LM | 700mA | 160° |
Handling Precautions:

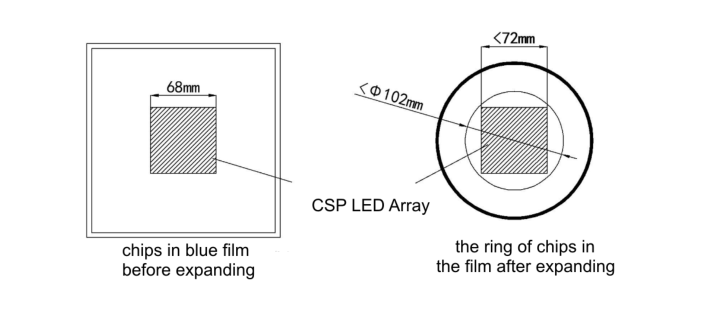

1) When expanding the CSP LEDs in the film, it is necessary to
ensure that CSP LEDs are in the center
area of the expanding ring and should not deviate too much.
2) The width of the entire CSP LED area after chip expanding should
be ≤ 72mm, and the maximum
diameter of the expanded chip area should be ≤ 102mm.
Support and Services:
FAQ:
Q1:What is the nature of your company, are you a manufacturer or a
trading company?
A1: We take pride in being a distinguished manufacturer with over
10 years of experience in the LED industry.
Q2: Why choose you as a LED supplier?
A2: You will get high quality LEDs with competitive prices, fast
delivery and good after-sale service.
Q3: Is there a minimum order quantity (MOQ) for LED products?
A3: Yes, we do have a minimum order quantity (MOQ) requirement.
Typically, the MOQ is set at 1000 pieces
for the majority of our LEDs, except for white color and warm white
LEDs.
Q4: Can I request samples before placing a larger order?
A4: We understand the importance of evaluating our products before
making a substantial purchase. We
offer some free of charge samples for most of the LEDs but please
agree to bear the freight for the sample delivery.
Q5: What is the estimated lead-time for order delivery?
A5: Once the payment is confirmed, we strive to ensure efficient
order processing and timely delivery. In general,
delivery leadtime for most orders is 7-10 days after payment is
confirmed. If shipping by express, the shipment
takes 5-7 days to arrive by air.
Q6: How are the goods shipped, and what is the expected delivery
timeframe?
A6: We primarily rely on renowned courier services such as DHL,
UPS, FedEx for shipping our products.
The delivery time will depend on the courier's schedule and your
location.
Q7: Can you provide additional services such as LED pin cutting or
customized packaging as per our
specific requirements?
A7: Absolutely. We value our customers' unique needs, and as such,
we offer customized manufacturing services.
Whether it's LED pin cutting or personalized packaging, we are
committed to fulfilling your requests to the best of
our ability.
Q8: How about the quality of your LEDs? Do you have any
certificates for your LEDs?
A8: All our LEDs are good quality with RoHS, CE and FCC
certificates.
Q9: Can I request customized LED specifications or special
requirements?
A9: Certainly. We understand that different projects may have
specific LED requirements. We offer customization
options for LED specifications, such as color temperature, beam
angle, and brightness, to meet your unique needs.
Please contact our sales team to discuss your specific
requirements.
Q10: What payment methods do you accept?
A10: We accept various payment methods, including bank transfers,
PayPal, and credit card payments. Our team will provide you with
detailed payment instructions upon order confirmation.
