Metal Head Flat Top 5.5V TO46 255nm - 275nm 113 Deg Top Looking UVC Diode

Demo Photoelectric Technology (Wuxi) Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Metal Head Flat Top 5.5V TO46 255nm - 275nm 113 Deg Top Looking UVC Diode from wholesalers

    Buy cheap Metal Head Flat Top 5.5V TO46 255nm - 275nm 113 Deg Top Looking UVC Diode from wholesalers
    • Buy cheap Metal Head Flat Top 5.5V TO46 255nm - 275nm 113 Deg Top Looking UVC Diode from wholesalers
    • Buy cheap Metal Head Flat Top 5.5V TO46 255nm - 275nm 113 Deg Top Looking UVC Diode from wholesalers

    Metal Head Flat Top 5.5V TO46 255nm - 275nm 113 Deg Top Looking UVC Diode

    Ask Lasest Price
    Brand Name : Demo
    Model Number : DM-265-TO46
    Certification : RoHS, CE, FCC
    Payment Terms : T/T, PayPal, Westernunion
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Metal Head Flat Top 5.5V TO46 255nm - 275nm 113 Deg Top Looking UVC Diode

    Description:

    • UVC Wavelength Range: Emits UV light in the range of 255nm to 275nm, ideal for applications requiring effective disinfection and sterilization.
    • High Efficiency: The diode is designed for high optical output, providing strong UVC performance with low power consumption.
    • TO-46 Package: Encased in a TO-46 package, known for its compact size and durability, making it suitable for space-constrained applications.
    • Metal Head Flat Top Design: The flat top design ensures even light distribution, improving efficiency in various setups, and the metal head offers enhanced heat dissipation.
    • Top-Looking Configuration: The diode is top-looking, meaning the emission is directed from the top of the device, which is ideal for focused UV applications such as disinfection and curing.
    • Beam Angle: Provides a 113° beam angle, allowing for broad coverage and uniform UV exposure in the target area.
    • Operating Voltage: Designed to operate at a 5.5V forward voltage, making it compatible with various low-voltage power supplies.
    • Durable and Reliable: Suitable for long-term operation in demanding environments with high reliability and a long lifespan.

    Technical Parameters:


    TypeTO46 Dip UVC LED
    HS Code8538900000
    ApplicationUVC Sterilization; UV Curing; Analytical Instruments; Medical Devices; Biomedical Applications;
    PackageTop Looking Package
    Beam Angle113deg
    Peak Wavelength265nm
    Radiant Flux0.8mW
    Full Width at Half Maximum11nm
    Forward Current100mA
    Operating Temperature-30 ~ +80
    Storage Temperature-40 ~ +100

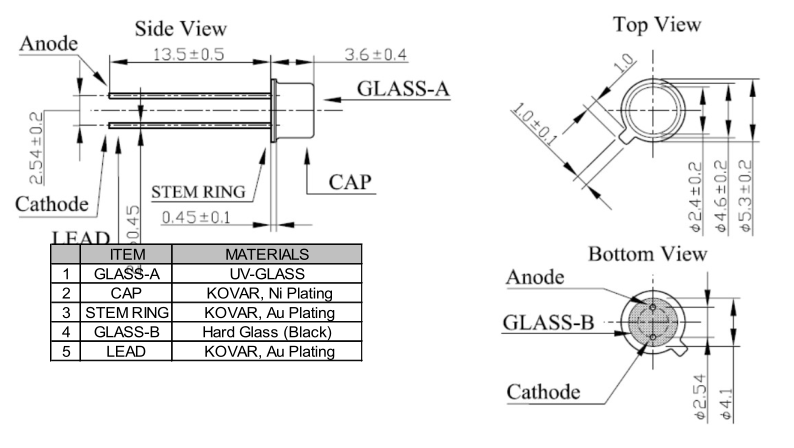

    Dimensions:


    Application:

    • UVC Sterilization: Used in air, water, and surface disinfection systems.
    • UV Curing: Ideal for UV curing processes in industrial applications.
    • Analytical Instruments: Used for UV-based sensing and detection.
    • Medical Devices: Employed in sterilization equipment and healthcare products.
    • Germicidal Lamps: Used in portable disinfection lamps for sanitizing rooms, offices, and vehicles.
    • Phototherapy: Potential applications in phototherapy for treating certain skin conditions, like psoriasis or eczema, by using controlled UV-C exposure.

    Customization:


    Support and Services:


    FAQ:


    Q1:What is the nature of your company, are you a manufacturer or a trading company?
    A1: We take pride in being a distinguished manufacturer with over 10 years of experience in the LED industry.

    Q2: Why choose you as a LED supplier?
    A2: You will get high quality LEDs with competitive prices, fast delivery and good after-sale service.

    Q3: Is there a minimum order quantity (MOQ) for LED products?
    A3: Yes, we do have a minimum order quantity (MOQ) requirement. Typically, the MOQ is set at 1000 pieces for the majority of our LEDs, except for white color and warm white LEDs.

    Q4: Can I request samples before placing a larger order?
    A4: We understand the importance of evaluating our products before making a substantial purchase. We offer some free of charge samples for most of the LEDs but please agree to bear the freight for the sample delivery.

    Q5: What is the estimated lead-time for order delivery?
    A5: Once the payment is confirmed, we strive to ensure efficient order processing and timely delivery. In general, delivery leadtime for most orders is 7-10 days after payment is confirmed. If shipping by express, the shipment takes 5-7 days to arrive by air.

    Q6: How are the goods shipped, and what is the expected delivery timeframe?
    A6: We primarily rely on renowned courier services such as DHL, UPS, FedEx for shipping our products. The delivery time will depend on the courier's schedule and your location.

    Q7: Can you provide additional services such as LED pin cutting or customized packaging as per our specific requirements?
    A7: Absolutely. We value our customers' unique needs, and as such, we offer customized manufacturing services. Whether it's LED pin cutting or personalized packaging, we are committed to fulfilling your requests to the best of our ability.

    Q8: How about the quality of your LEDs? Do you have any certificates for your LEDs?
    A8: All our LEDs are good quality with RoHS, CE and FCC certificates.

    Q9: Can I request customized LED specifications or special requirements?
    A9: Certainly. We understand that different projects may have specific LED requirements. We offer customization options for LED specifications, such as color temperature, beam angle, and brightness, to meet your unique needs. Please contact our sales team to discuss your specific requirements.

    Q10: What payment methods do you accept?
    A10: We accept various payment methods, including bank transfers, PayPal, and credit card payments. Our team will provide you with detailed payment instructions upon order confirmation.
